AMM/03 series Thermographs

AMM/03 series Thermographs
Description

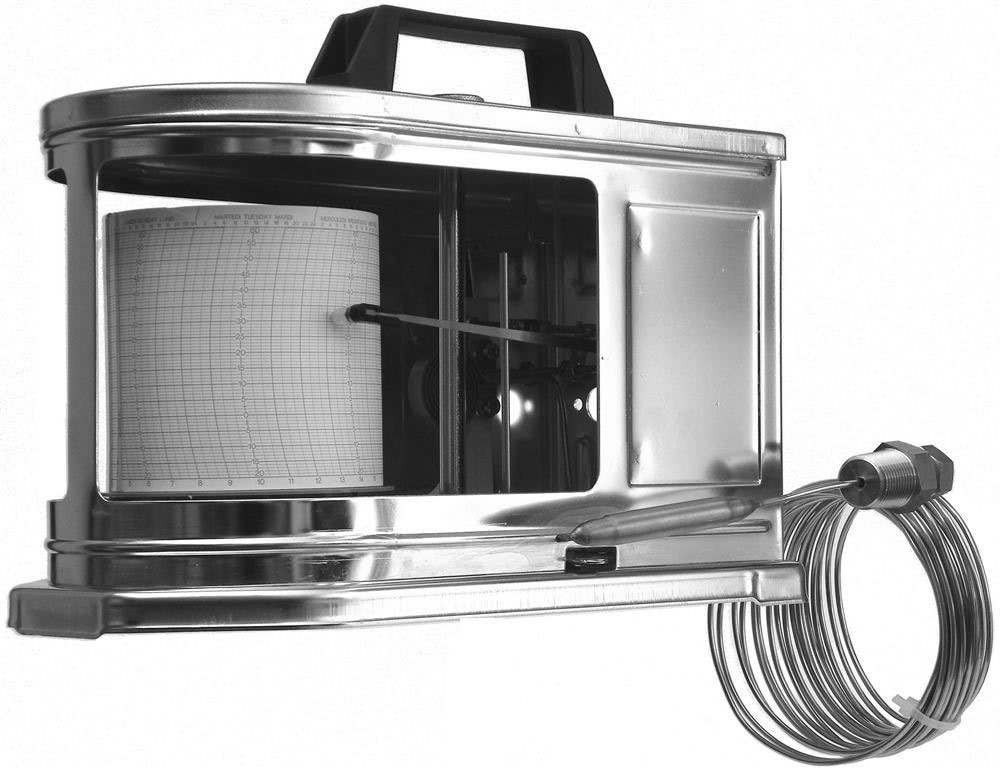

The AMM/03 thermograph is a portable drum temperature recorder with a Bourdon bimetal sensing element and an AISI 304 stainless steel capillary. Temperature is recorded by a nib on graph paper wrapped around the rotating drum. Recording and drum rotation can be mechanical or battery powered. Daily or weekly recording frequency can be set by the operator.



Thermometric spring : Molybdenum spring

Degree of protection : IP65

Capillary tube : St. st. AISI 304

Diagram plate : 125 mm

Reading amplitude : 41 mm

Battery : 1,5V LR3 AAA alcalina
