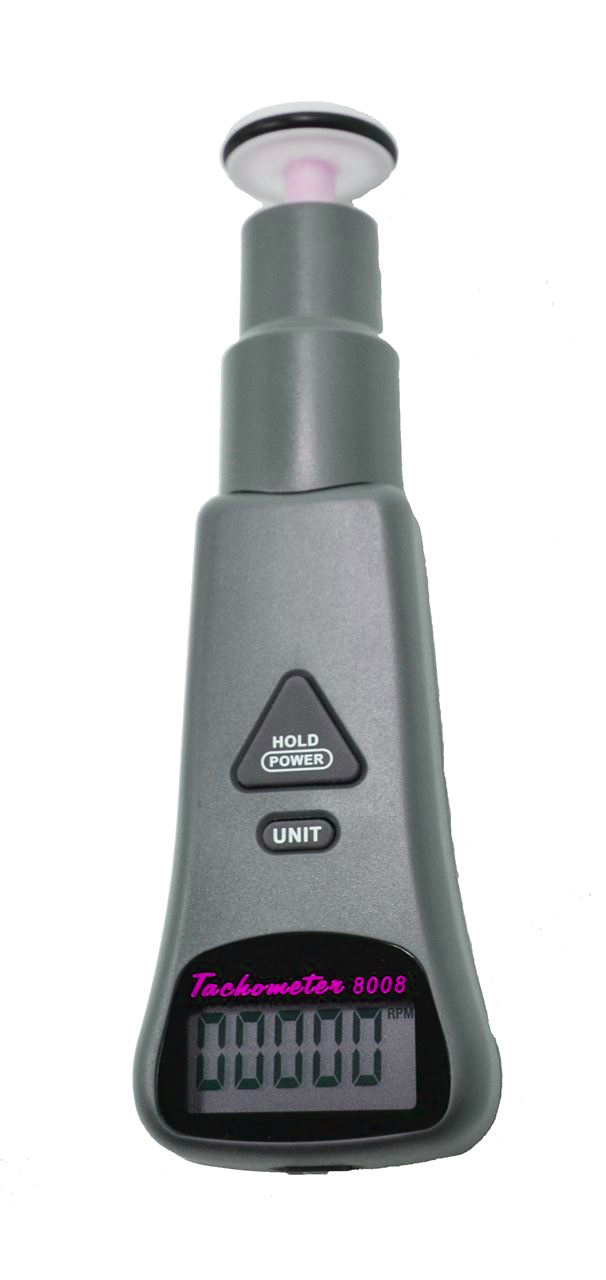

AM8008 series Digital Contact & Non-contact Tachometer

AM8008 digital tachometer is a pocket size and easy-to-use instrument that can measure rotation of a driving axle, or of a helix or a of lathe, with two different measuring modes: far from the rotating object using the red beam light, or touching the object via convex and concave contact tips. Four rotation speed units are selectable in contact mode: RPMI, m/min, ft/min, yd/min. Only three steps are required to switch the operational mode.

LCD Display

Measuring Range: Rotation (non-contact) 10-99999 RPMI Rotation (contact) 10-19999 RPMI

Surface speed (contact) 1.0000-99999.9 m/min

Sampling time: 1 sec (˃60 RPMI); ˃1 sec (10-60 RPMI).

Measure distance: 5-30 cm.

Accessories included: reflective tape, 1 convex and 1 concave tip, operational manual.

Data sheet
