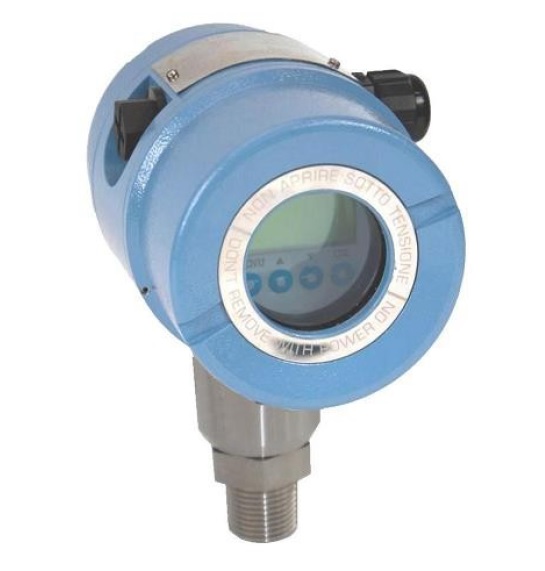

DS-SST76 Smart Digital Pressure Transmitter with Diaphragm

DS-SST76 Smart Digital Pressure Transmitter with Diaphragm
Description

The pressure transmitter Smart series DS-SST76 has a pressure measurement range from 0.023 to 101 bar and is equipped with AISI 316 stainless steel diaphragm. The sensitive element is a piezoresistive sensor that transmits the value of measured pressure. The output signal generated is 4-20mA in two-wire technique and is accompanied by digital communication with HART protocol. It is possible to configure the instrument locally using 4 buttons and display the pressure value on the LCD display. The transmitter can also be configured remotely via a universal portable terminal or a computer with an interface. This instrument has automatic temperature compensation.
